Tiny USB-A dev board

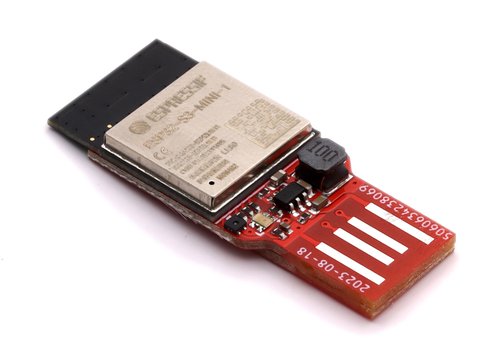

This is a tiny board with a USB-A tab printed on the board for direct connection to USB socket. It has an ESP32-S3-MINI-1-N4R2 module.

  • ESP32-S3 embedded, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240 MHz
  • 384 KiB ROM
  • 512 KiB SRAM
  • 16 KiB SRAM in RTC
  • Up to 8 MiB Quad SPI flash
  • 2 MiB PSRAM
  • GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), ADC, touch sensor, temperature sensor, timers and watchdogs
  • USB-A is for power and for USB data on the S3 processor.
  • RGB status LED.
  • Temp/Humidity sensor (will need calibration as close to processor which will add to temperature).
  • Includes 5 pin pad header for serial programming/debug as well, for Tasmotiser.

Whilst this could be used for anything you like, one of the uses we have seen for these is as a BLE to WiFi relay for BluecoinT temperature sensors.

PCB: https://github.com/revk/ESP32-Generic/tree/main/PCB/USBA

Buy on Amazon: https://www.amazon.co.uk/dp/B0CG3S8JX3

Buy (ESP32-S1, no UART) for £24.00: Order qty 1
